API Filter Press: The Ultimate Solution for Accurate Drilling Fluid Testing

API Filter Press is one of the most critical instruments in drilling fluid testing, ensuring accurate measurement of filtrate loss and high-quality mud cake formation. In oil & gas drilling operations, filtration control directly impacts wellbore stability, formation damage prevention, and drilling efficiency.

At Petropath Fluids Limited, we manufacture and supply robust, API-compliant mud lab equipment trusted by drilling engineers, laboratories, and R&D teams worldwide.

Introduction to API Filter Press

An API Filter Press is a standardized filtration testing device used to evaluate drilling fluids under controlled pressure conditions. It determines how much liquid escapes from the drilling mud when pressure is applied and how effectively the mud forms a filter cake.

Petropath’s API Filter Press is engineered for precision, durability, and ease of use, making it suitable for both field operations and laboratory environments.

What Is an API Filter Press?

The API Filter Press is a drilling fluid filtration test apparatus designed according to API standards. It simulates downhole filtration conditions by applying a constant pressure across a filter paper, allowing engineers to analyze:

Filtrate volume loss
Mud cake thickness and quality
Fluid stability and sealing capability

These parameters are essential for optimizing drilling fluid formulations and preventing costly drilling problems.

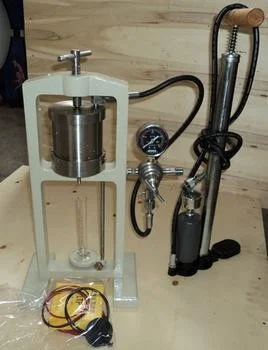

Key Features of Petropath API Filter Press

Effective Filtration Area: 45.6 cm² for accurate and repeatable results
Working Pressure: 0.69 MPa (100 PSI) as per API specification
Fluid Capacity: 350 ml per unit for consistent testing
Heavy-Duty Construction: Built to withstand harsh field conditions
User-Friendly Design: Simple assembly, operation, and cleaning
Standard Compatibility: Equivalent to Fann & OFI models

Technical Specifications

Parameter	Specification
Filtration Area	45.6 cm²
Working Pressure	0.69 MPa (100 PSI)
Fluid Capacity	350 ml
Make	Fann / Offite / Equivalent
Application	Field & Laboratory Use

Benefits of Using an API Filter Press

✅ Accurate Filtration Measurement

The API Filter Press delivers precise filtrate loss data, ensuring reliable mud performance analysis.

✅ Improved Drilling Efficiency

Optimized drilling fluids reduce formation damage, torque, and drag.

✅ Long-Term Durability

Manufactured with premium materials for extended service life.

✅ Easy Operation

Minimal training required—ideal for both lab technicians and field engineers.

✅ API Compliance

Fully meets international API standards for drilling fluid testing.

✅ Cost-Effective Solution

Reduces mud treatment costs and minimizes non-productive time (NPT).

Applications of API Filter Press

The API Filter Press for drilling fluids is widely used in:

Oil & Gas Drilling Rigs – Routine mud testing
Mud Laboratories – Quality control and reporting
Geological Exploration Sites – On-site fluid analysis
R&D Centers – Developing advanced drilling fluid formulations
Academic & Training Institutes – Practical drilling fluid educatio

Why Filtration Testing Matters in Drilling Operations

Poor filtration control can lead to:

Formation damage
Differential sticking
Wellbore instability
Increased drilling costs

Using a reliable API filtration test apparatus helps engineers design drilling fluids that form thin, impermeable mud cakes—protecting formations and improving drilling safety.

FAQs – API Filter Press

What is the filtration area of the API Filter Press?

45.6 cm², as per API standards.

What pressure does it operate at?

0.69 MPa (100 PSI).

How much drilling fluid does it hold?

350 ml per test.

Is it suitable for field use?

Yes, it is designed for both laboratory and on-site applications.

Is it easy to maintain?

Yes, the design allows quick cleaning and low maintenance.

Why Choose Petropath Fluids Limited?

✔ ISO 9001:2015 & D&B Certified
✔ 15+ Years of Oilfield Experience
✔ Advanced Manufacturing Facilities
✔ Global Technical Collaborations
✔ Trusted by Drilling Professionals Worldwide

Petropath delivers equipment that combines engineering precision, reliability, and compliance, ensuring consistent performance in demanding drilling environments.

Conclusion

The API Filter Press from Petropath is an indispensable tool for accurate drilling fluid filtration testing. Designed to meet strict API standards, it ensures dependable results, long service life, and operational efficiency across oil fields, laboratories, and research facilities.

By choosing Petropath, you invest in precision testing, reduced operational risks, and superior drilling performance—backed by over 15 years of industry expertise.

✅ Final Call to Action:

Looking for a reliable and accurate API Filter Press for your mud lab equipment needs? Choose Petropath – where quality meets performance.

Contact Us

We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
