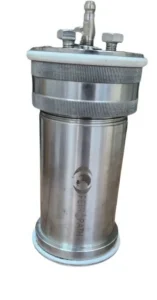

High-Pressure High-Temperature Aging Cell
Key Features of the High-Pressure High-Temperature Aging Cell
Heavy-duty stainless steel construction (SS 304 / SS 316)
Internal volume of 500 mL for standard mud testing
Maximum working pressure up to 2,500 psi (17.2 MPa)
Maximum operating temperature of 500°F (260°C)
Leak-proof threaded cap design for operator safety
Corrosion-resistant materials for extended service life
Fully compatible with standard roller oven systems
Easy maintenance with replaceable O-rings
These features make the HPHT Aging Cell an essential component in any advanced drilling fluid testing laboratory.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Aging Cell 500 mL |
| Material | Stainless Steel (SS 304 / SS 316) |
| Internal Volume | 500 mL |
| Maximum Pressure | 2,500 psi |
| Maximum Temperature | 500°F (260°C) |
| Sealing Type | O-ring / Metal-to-metal |
| Pressure Gauge | Optional (0–3000 psi) |
| Safety Valve | Optional |
| Application | HPHT Drilling Mud Aging |
| Compatible Equipment | Roller Oven / Heating Chamber |
Applications of HPHT Aging Cell
The High-Pressure High-Temperature Aging Cell is widely used across oilfield laboratories for:
Static and dynamic drilling mud aging tests
HPHT fluid stability analysis
Performance evaluation of drilling fluid additives
Monitoring rheological and filtration property changes
Supporting R&D, QA/QC, and formulation validation
Simulating downhole aging conditions accurately
Whether used for water-based, oil-based, or synthetic drilling fluids, this drilling mud aging cell delivers consistent and trustworthy results.
Advantages of Using High-Pressure High-Temperature Aging Cell
✅ Robust Construction – Stainless steel design ensures durability under extreme laboratory conditions
✅ Handles Extreme HPHT Conditions – Reliable performance at high pressures and temperatures
✅ Consistent Results – Repeatable testing outcomes improve data accuracy
✅ Laboratory Compatibility – Works seamlessly with roller ovens and mud testing equipment
✅ API Compliance – Suitable for labs following international testing standards
Safety & Compliance
Safety is a critical factor in HPHT testing. The High-Pressure High-Temperature Aging Cell is engineered with multiple safety considerations, including:
Design aligned with API recommended practices
High-pressure hydrostatic testing before delivery
Leak-proof sealing to prevent fluid escape
Optional safety relief valves for enhanced protection
High-temperature resistant materials for operator safety
These measures ensure safe operation even under extreme testing conditions.
Optional Accessories
To enhance performance and usability, the HPHT Aging Cell can be supplied with:
Pressure gauge (0–3000 psi) for accurate monitoring
Safety relief valve for laboratory safety
Clamp assembly for secure roller oven placement
Replacement O-rings for easy maintenance
Roller oven (available separately)
Custom accessories to meet specific testing protocols
Spare parts and upgrade kits are also available to extend the lifespan of the equipment.
Packaging & Delivery
Each High-Pressure High-Temperature Aging Cell is individually packed to ensure safe transit:
Protective casing with cushioning
Export-ready wooden or foam packaging
User manual and test certificate included
Secure shipping with domestic and international tracking
Why Choose Petropath?
Conclusion
We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
