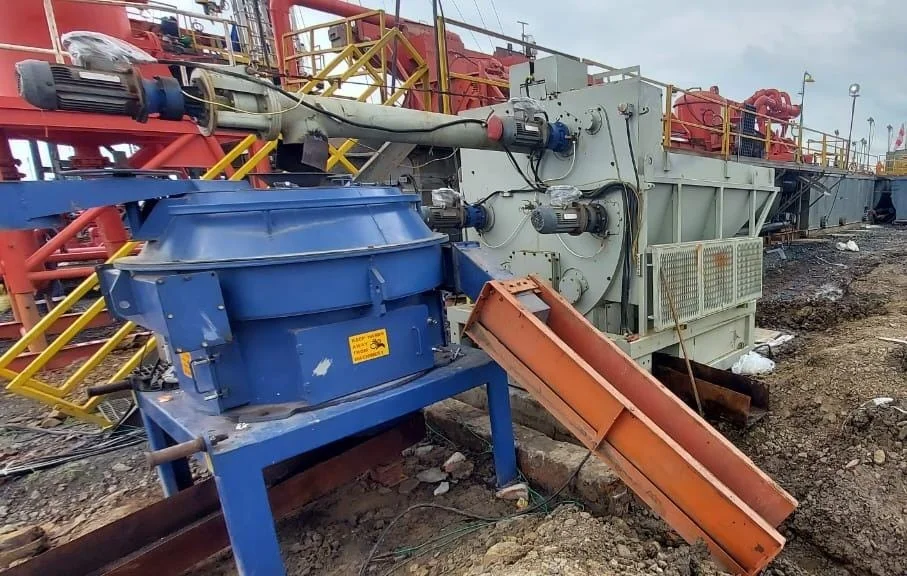

Vertical Cuttings Dryer PPVCD930 – High-Performance Drilling Waste Management Solution
What is a Vertical Cuttings Dryer?
A vertical cuttings dryer is a high-speed centrifugal unit used to separate drilling fluids from drill cuttings generated during oil-based mud (OBM) and water-based mud (WBM) operations. The Vertical Cuttings Dryer PPVCD930 operates using high G-force to recover reusable drilling fluids and discharge dry cuttings with minimal residual oil.
How the Vertical Cuttings Dryer PPVCD930 Works
Drill cuttings from the shale shaker are fed directly into the dryer
High-speed rotation separates liquids from solids
Recovered drilling fluids are returned to the active mud system
Dry cuttings are discharged with oil-on-cuttings typically below 5%
This process reduces waste volume, lowers disposal costs, and maximizes fluid reuse—making the Vertical Cuttings Dryer PPVCD930 a vital component of modern drilling waste management equipment.
Key Benefits:
✅ Maximum Drilling Fluid Recovery – Minimizes mud losses and optimizes reuse
✅ Environmental Compliance – Meets global onshore and offshore discharge norms
✅ Reduced Waste Disposal Costs – Lower transportation and treatment expenses
✅ Improved Solids Control Efficiency – Cleaner mud for downstream systems
✅ Continuous Rig Operations – Designed for automated, uninterrupted performance
By integrating the Vertical Cuttings Dryer PPVCD930, operators achieve superior oil on cuttings reduction while maintaining compliance with environmental regulations.
Petropath Fluids Ltd – Expertise You Can Trust
Petropath Fluids Ltd is a trusted provider of solids control equipment for oil and gas, drilling chemicals, and waste management solutions. The Vertical Cuttings Dryer PPVCD930 reflects the company’s commitment to innovation, reliability, and sustainability.
Petropath offers:
Robust, field-proven equipment
End-to-end support including commissioning and training
Custom solutions for diverse drilling environments
Long-term maintenance and technical assistance
Product Overview – Vertical Cuttings Dryer PPVCD930
The Vertical Cuttings Dryer PPVCD930 is engineered for high throughput and durability. With a treatment capacity of 30–55 tons per hour, it consistently achieves oil-on-cuttings levels below 5%, even in demanding drilling conditions.
Performance Highlights
OOC Reduction: <5%
Capacity: 30–55 TPH
Surface Moisture: 4–10%
Rotary Speed: 900 RPM
Screen Diameter: 930 mm
Its stainless steel screen basket, triple sealing system, and centralized lubrication ensure long service life with minimal downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model | Petropath PPVCD930 |
| Treating Capacity | 30–55 Tons/Hour |
| Surface Moisture | 4% – 10% |
| Screen Diameter | 930 mm |
| Maximum Speed | 900 RPM |
| Main Motor Power | 25–55 KW |
| Oil Tank Capacity | 48 Litres |
| Lubrication | Centralized Automatic |
| Motor Protection | Overload |
| Gearbox Protection | Torque |
| Lubrication Protection | Pressure & Temperature |
Construction & Materials
Housing: Carbon steel with anti-corrosion coating
Screen Basket: Stainless steel, dynamically balanced
Drive System: Heavy-duty gearbox with torque protection
Sealing: Triple sealing design for zero leakage
These features make the Vertical Cuttings Dryer PPVCD930 ideal for harsh drilling environments.
Optional Accessories
Screw conveyor for cuttings transfer
Electrical control panel with safety interlocks
Skid-mounted base for mobility
Explosion-proof motor options
Applications:
The Vertical Cuttings Dryer PPVCD930 is widely used in:
OBM and WBM drilling operations
Drilling waste management systems
Onshore and offshore rigs
HPHT, CBM, and environmentally sensitive drilling sites
Why Choose Petropath’s PPVCD930?
Proven performance in KG Basin, Cambay Basin, and CBM Bokaro
Integrated solids control and waste management solutions
Cost-effective, environmentally responsible operations
Designed for long-term reliability in demanding oilfield conditions
