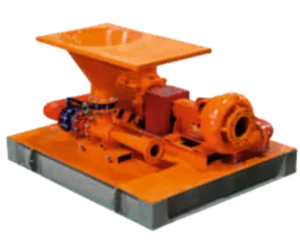

🛢️ Drilling Fluid Mixing Hopper: The Backbone of Efficient Mud Preparation Systems
Drilling Fluid Mixing Hopper systems play a decisive role in achieving consistent, high-performance drilling operations. In the oil and gas industry, where fluid properties directly impact wellbore stability, penetration rate, and operational safety, efficient mud preparation is non-negotiable. At Petropath Fluids Ltd., we engineer advanced mixing solutions designed to deliver uniform, fast, and reliable blending of drilling additives into fluid systems.
What Is a Drilling Fluid Mixing Hopper?
Key Features
Petropath designs each mud mixing hopper with durability, safety, and performance in mind:
Venturi-type design for high-shear, lump-free mixing
Carbon steel or stainless steel construction for long service life
Efficient dispersion of polymers, barite, and bentonite
Adjustable flow control valve for operational flexibility
Seamless compatibility with mud tanks and mixing pumps
Low maintenance requirements
Safe and operator-friendly operation
These features make the drilling fluid mixing hopper suitable for harsh oilfield environments where reliability is essential.
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Type | Venturi Mixing Hopper |
| Capacity | 600–1500 L/min (customizable) |
| Inlet Size | 2” or 3” |
| Outlet Size | 4” or 6” |
| Working Pressure | 0.2–0.6 MPa |
| Material | Carbon Steel / Stainless Steel |
| Connection | Flanged or Hammer Union |
| Mounting | Skid-mounted / Tank-top |
Custom configurations are available to meet specific drilling fluid system requirements.
Operating Principle of Venturi Mixing Hopper
The venturi principle is the core technology behind Petropath’s drilling mud mixing equipment. When drilling fluid flows through the venturi throat at high velocity, a pressure drop is created. This suction effect pulls dry or liquid additives into the hopper, where they are instantly dispersed into the fluid stream.
This operating principle ensures:
Rapid chemical hydration
Uniform mud density and viscosity
Zero clumping or chemical buildup
As a result, the drilling fluid mixing hopper delivers consistent mud quality with minimal operator intervention.
Advantages of Petropath Drilling Fluid Mixing Hopper
Choosing Petropath oilfield mixing equipment offers measurable operational benefits:
⏱ Faster mud preparation and reduced rig downtime
💰 Lower chemical consumption and operational costs
⚖ Consistent drilling fluid properties for improved wellbore stability
🔧 Easy integration into existing mud systems
🛡 High durability with minimal maintenance
These advantages directly contribute to safer drilling operations and improved overall efficiency.
Applications Across Drilling Operations
The mud mixing hopper is widely used in:
Onshore and offshore drilling rigs
Water-based and oil-based mud systems
High-density drilling fluid preparation
Mud plants and centralized mixing facilities
Its adaptability makes the drilling fluid mixing hopper a versatile solution for both exploration and production drilling environments.
Safety & Maintenance
Petropath places high priority on safety and operational reliability. To ensure long-term performance:
Always maintain proper pressure levels before operation
Avoid overloading the hopper with dry powder
Inspect the venturi throat and valves regularly
Clean the hopper thoroughly after each operation to prevent clogging
With these simple practices, the hopper guarantees years of trouble-free operation.
Optional Customizations
Petropath emphasizes safe and long-term operation of drilling fluid mixing hopper systems. Recommended practices include:
Maintaining correct operating pressure
Avoiding excessive dry powder loading
Regular inspection of venturi throat and valves
Thorough cleaning after each mixing cycle
Following these guidelines ensures reliable performance and extended equipment life.
Optional Customization Options
To meet diverse oilfield requirements, Petropath offers:
Stainless steel 316 for corrosive environments
Integrated flow meters for precise control
Skid-mounted or trailer-mounted mobility options
PLC automation for advanced drilling operations
These options allow clients to tailor their drilling mud mixing equipment for maximum efficiency.
Why Choose Petropath’s Drilling Fluid Mixing Hopper?
Conclusion
Upgrade your drilling fluid preparation with the Drilling Fluid Mixing Hopper by Petropath Fluids Ltd. Engineered for reliability, efficiency, and long service life, it’s the smart choice for oilfield professionals.
We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
