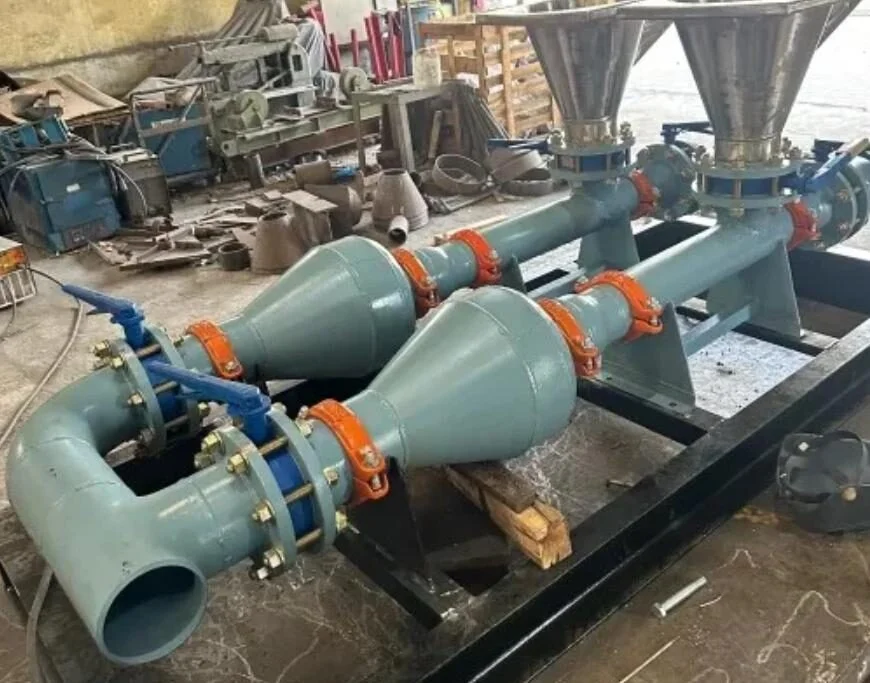

Jet Shearing Device System for High-Performance Drilling Fluid Mixing
The Jet Shearing Device System is transforming the way drilling fluids are prepared in modern oilfield operations. Designed for superior polymer hydration, fast additive dispersion, and consistent drilling mud performance, this advanced system delivers exceptional efficiency while minimizing operational downtime and maintenance requirements.
In drilling environments where fluid quality directly impacts well performance, having a reliable and high-efficiency mixing solution is critical. Traditional mechanical mixers often struggle with uneven mixing, polymer clumping, excessive energy consumption, and frequent maintenance issues. The Jet Shearing Device System solves these challenges using innovative jet shearing technology that ensures rapid and uniform fluid preparation.
Engineered for both field and laboratory applications, this advanced drilling mud mixing system provides reliable performance for water-based drilling fluids, polymer hydration, bentonite dispersion, and chemical mixing operations. Its compact and durable design makes it suitable for demanding drilling conditions across global oilfield projects.
A Jet Shearing Device System is a specialized fluid processing solution used to hydrate and shear drilling additives efficiently. It is widely used in drilling operations to improve mud quality and maintain consistent rheological properties.
This advanced drilling fluid shearing mixer works by generating high-velocity fluid movement through specially designed nozzles and venturi systems. The intense turbulence created during the process helps disperse polymers and additives evenly throughout the drilling fluid.
The system is commonly integrated with mixing tanks, hoppers, and circulation units to create a fully optimized drilling mud preparation setup. Unlike conventional agitator systems, the Jet Shearing Device System contains no rotating or moving mechanical components, significantly reducing maintenance requirements and improving operational reliability.
How the Jet Shearing Device System Works
The working principle of the Jet Shearing Device System is based on low-pressure and high-volume jet shearing technology. Drilling fluid is forced through specially engineered nozzles at high velocity, generating powerful turbulence and shearing forces.
These shearing forces help:
- Break long-chain polymers such as PHPA, PAC, and CMC
- Eliminate polymer clumps and “fish eyes”
- Accelerate hydration of drilling additives
- Improve bentonite dispersion
- Maintain stable drilling mud viscosity
- Ensure homogeneous fluid consistency
Because this polymer shearing equipment operates without moving mechanical parts, it delivers highly reliable performance even in harsh drilling environments.
The result is faster mud preparation, reduced chemical waste, and improved drilling fluid efficiency.
Key Advantages of Jet Shearing Device System
The Jet Shearing Device System offers several operational and economic benefits for drilling fluid management operations.
Rapid Polymer Hydration
One of the major advantages of this drilling mud mixing system is instant polymer hydration. The system rapidly disperses additives and prevents the formation of lumps, ensuring smooth and efficient drilling fluid preparation.
Improved Drilling Fluid Quality
Uniform mixing ensures stable rheology and better drilling performance. Properly hydrated drilling fluids improve hole cleaning, lubrication, and overall drilling efficiency.
Reduced Mixing Time
The high-efficiency shearing process significantly reduces mud preparation time compared to conventional mechanical mixers.
Low Maintenance Design
Since the system contains no rotating parts, maintenance costs are extremely low. This improves reliability and minimizes downtime during drilling operations.
Energy Efficient Operation
The low-pressure operating principle helps reduce energy consumption while maintaining high-volume mixing performance.
Compact and Flexible Installation
The Jet Shearing Device System can be installed inline or mounted on skid systems for easy integration into existing drilling fluid setups.
Applications of Jet Shearing Device System
The Jet Shearing Device System is widely used across multiple drilling and fluid processing applications.
Drilling Mud Preparation
The system is highly effective in preparing water-based drilling mud systems with consistent fluid properties.
Polymer Hydration
This advanced polymer shearing equipment efficiently hydrates drilling polymers such as PHPA, PAC, and CMC.
Bentonite Dispersion
The system ensures proper bentonite mixing and suspension for stable drilling fluid performance.
Laboratory Fluid Testing
Laboratories use the drilling fluid shearing mixer for fluid formulation testing and performance analysis.
Oilfield Fluid Management
Oilfield service companies rely on the oilfield mud mixing device for high-efficiency fluid processing operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | Low pressure (2–10 bar) |
| Flow Rate | High volume (1–5 m³/hr) |
| Shear Type | Venturi / Multi-jet |
| Integration | Hopper & mixing tank |
| Material | SS / CS with protective coating |
| Inlet / Outlet Size | 1” – 2” |
| Temperature Range | Up to 90°C |
| Installation | Inline or skid-mounted |
| Pump Power | 1–5 HP (if pump-driven) |
| Moving Parts | None |
| Maintenance | Very low |
Advanced Design Features
The Jet Shearing Device System is designed for maximum efficiency and long operational life.
Key features include:
- High-volume Technoflo jet design
- Continuous inline mixing capability
- Instant additive dispersion
- Scalable flow rate configurations
- Compact skid-mounted structure
- Corrosion-resistant construction
- Reliable operation in demanding drilling conditions
These advanced features make the system one of the most effective solutions for drilling fluid preparation and polymer hydration.
Quality Standards and Safety
Every Jet Shearing Device System is manufactured according to strict industry quality standards to ensure long-term performance and reliability.
The system undergoes rigorous testing procedures, including:
- Pressure testing
- Corrosion resistance checks
- Flow performance validation
- Material quality inspections
Its enclosed and safe operational design also minimizes operator exposure and enhances workplace safety during drilling fluid processing operations.
Customization Options
The Jet Shearing Device System can be customized based on operational requirements and drilling project demands.
Available customization options include:
- Skid-mounted integrated systems
- Custom nozzle configurations
- Automated PLC or VFD control systems
- High-capacity flow designs
- Compatibility with synthetic and water-based drilling fluids
- Custom hopper and tank integration
These customization capabilities allow operators to optimize drilling fluid preparation according to specific project requirements.
Manufacturer Support and Services
Reliable technical support is essential for maintaining efficient drilling operations. Professional engineering assistance ensures smooth installation, operation, and maintenance of the Jet Shearing Device System.
Support services typically include:
- Installation and commissioning assistance
- Technical consultation
- System optimization support
- Operator training
- Spare parts availability
- After-sales maintenance services
With its advanced engineering, low-maintenance design, and high-efficiency performance, the Jet Shearing Device System has become an essential solution for modern drilling fluid management operations worldwide.
Conclusion
The Jet Shearing Device System is a powerful and reliable solution for modern drilling mud preparation. Its advanced jet shearing technology improves polymer hydration, eliminates mixing inconsistencies, and enhances overall drilling fluid performance.
With low maintenance requirements, compact design, energy-efficient operation, and scalable configurations, this advanced drilling mud mixing system delivers outstanding value for drilling operations worldwide.
For companies seeking faster mud preparation, reduced chemical waste, and superior drilling fluid quality, the Jet Shearing Device System remains one of the most effective technologies available in the drilling industry today.
Looking for a high-performance Jet Shearing Device System for your drilling operations? Our team is ready to help you choose the right solution for efficient drilling mud mixing, polymer hydration, and fluid management applications.
Whether you need a customized system, technical consultation, installation support, or pricing information, we are here to assist you with reliable and scalable solutions for global drilling projects.
