In the oil and gas industry, precision in drilling fluid analysis is not optional—it is essential for operational success and safety. Among all viscosity testing tools, the Marsh Funnel with Measuring Cup stands out as a highly reliable, simple, and field-proven solution for evaluating drilling fluid flow properties.
This widely accepted drilling fluid testing equipment is trusted across global oilfields due to its affordability, consistency, and compliance with API RP 13B-1 and API RP 13B-2 standards. Whether used on rigs or in laboratories, the Marsh Funnel with Measuring Cup ensures quick and dependable viscosity readings.

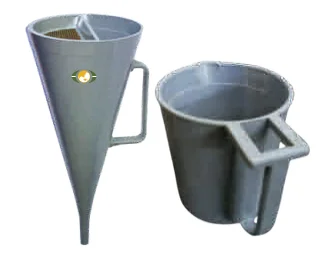

What Is a Marsh Funnel with Measuring Cup?
The Marsh Funnel with Measuring Cup is a standardized mud viscosity measurement tool designed to determine the flow characteristics of drilling fluids. It works by measuring the time required for a fixed volume of fluid to pass through a calibrated orifice.
This simple yet effective Marsh Funnel viscosity test provides instant insights into fluid behavior, helping engineers maintain optimal drilling performance. Its ease of use makes it an essential tool for both field engineers and laboratory technicians.
⭐ 7 Proven Benefits of Marsh Funnel with Measuring Cup
1. Fast and Reliable Viscosity Measurement
The Marsh Funnel with Measuring Cup delivers results in less than a minute, allowing immediate adjustments to drilling fluids without delaying operations.
2. API-Standardized Accuracy
Designed according to API guidelines, the API Marsh Funnel ensures consistent and repeatable results across different drilling environments.
3. Rugged and Durable Construction
Built using high-quality plastic or stainless steel, this drilling fluid testing equipment is engineered to withstand harsh oilfield conditions.
4. Cost-Effective Testing Solution
Compared to advanced rheological instruments, the Marsh Funnel with Measuring Cup offers a highly economical solution without compromising performance.
5. Easy Field Operation
The mud viscosity measurement tool requires no specialized training, making it ideal for quick on-site usage.
6. Portable and Lightweight
Its compact design allows easy transport, ensuring accessibility at remote drilling locations.
7. Versatile Applications
The Marsh Funnel with Measuring Cup is compatible with Water-Based Mud (WBM), Oil-Based Mud (OBM), and synthetic fluids.
Key Features
- Standardized API Design for accurate and consistent results
- Graduated Measuring Cup (1000 ml) for precise readings
- Precision Orifice (4.76 mm) ensuring uniform flow
- Low Maintenance Design for repeated usage
- Field and Laboratory Compatibility
Technical Specifications
- Funnel Capacity: Approx. 1,500 ml
- Orifice Diameter: 4.76 mm (3/16″)
- Calibration: 946 ml water at 21°C flows in 26 ± 0.5 seconds
- Measuring Cup Capacity: 1,000 ml
- Material: Plastic / Stainless Steel
- Length: 12″–15″
- Weight: Less than 500 g
- Compliance: API RP 13B-1 & API RP 13B-2
Benefits for Drilling Operations
Using the Marsh Funnel with Measuring Cup improves operational efficiency in multiple ways:
- Quick Mud Analysis: Reduces downtime with rapid viscosity measurement
- Improved Hole Cleaning: Maintains optimal fluid properties
- Enhanced Wellbore Stability: Prevents drilling complications
- Cost Efficiency: Affordable and reliable testing solution
- Regulatory Compliance: Meets industry standards
Applications of Marsh Funnel with Measuring Cup
✔ On-Rig Drilling Operations
Enables real-time monitoring of mud viscosity for better drilling performance.
✔ Mud Testing Laboratories
Used for routine analysis and quality assurance of drilling fluids.
✔ Training Institutes
A fundamental teaching tool in petroleum engineering programs.
✔ Quality Control & Audits
Ensures fluids meet operational requirements before deployment.
Why Choose Petropath?
- API-Certified Quality Products
- Extensive Industry Experience
- Reliable Customer Support
- Competitive Pricing
- Trusted by Global Oil & Gas Companies
Conclusion
The Marsh Funnel with Measuring Cup remains one of the most essential tools in drilling fluid testing. Its accuracy, portability, and cost-effectiveness make it a preferred choice for engineers worldwide.
By incorporating this reliable mud viscosity measurement tool into your operations, you can significantly enhance drilling efficiency, maintain fluid consistency, and ensure compliance with industry standards.
Looking for high-quality drilling fluid testing equipment?
Get in touch with our experts today to find the right solution for your operations.
