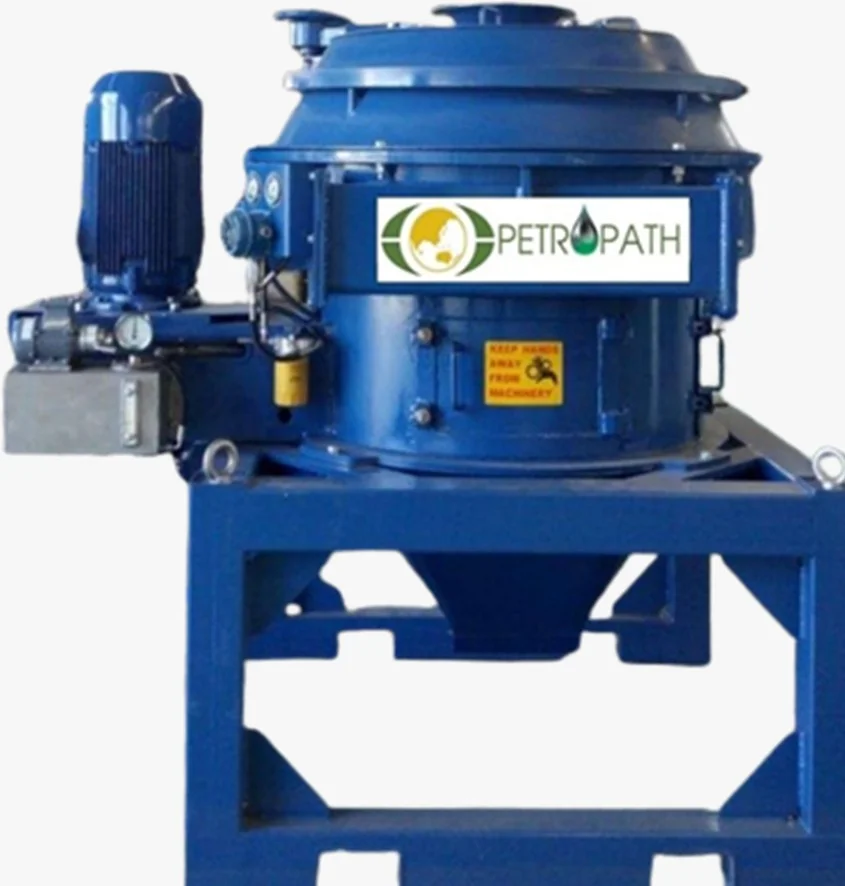

Vertical Cuttings Dryer: Maximizing Efficiency, Compliance & Drilling Fluid Recovery
What is a Vertical Cuttings Dryer?
A Vertical Cuttings Dryer is high-performance solids control equipment for drilling operations, primarily used in oil-based mud (OBM) and synthetic-based mud (SBM) systems. Its primary function is to separate recoverable drilling fluids from drilled cuttings using high-speed centrifugal force.
The result is a highly efficient oil based mud recovery system that delivers three major outcomes:
Maximum recovery of expensive drilling fluids
Significant reduction in drilling waste volume
Lower oil-on-cuttings (OOC), typically below 5%
By reducing OOC levels, the Vertical Cuttings Dryer helps operators meet regulatory discharge limits, particularly in environmentally sensitive and offshore drilling zones.
How the Vertical Cuttings Dryer Works
The Vertical Cuttings Dryer VCD operates through a simple yet powerful multi-stage process:
- Feed Stage: Drilled cuttings discharged from the primary shale shaker are transferred directly into the Vertical Cuttings Dryer.
- Separation Stage: Inside the unit, a rotating basket generates high G-forces. This centrifugal action forces drilling fluid through a fine screen while retaining solid particles.
- Recovery Stage: Recovered oil-based drilling fluid is collected and returned to the active mud system for reuse, improving overall mud efficiency.
- Discharge Stage: Dried cuttings with significantly reduced OOC are discharged safely, minimizing disposal costs and environmental impact.
This closed-loop process ensures efficient fluid recovery and effective drilling waste management.
Key Benefits of Vertical Cuttings Dryer
✅ Maximized Drilling Fluid Recovery
The Vertical Cuttings Dryer minimizes the loss of costly oil-based mud, helping operators recover valuable fluids and reduce overall mud consumption.
✅ Enhanced Environmental Compliance
With its ability to achieve low OOC values, the VCD ensures compliance with strict environmental regulations for onshore and offshore drilling operations.
✅ Improved Solids Control Efficiency
Cleaner recovered fluids enhance the performance of downstream equipment such as centrifuges and desanders, extending equipment life.
✅ Reduced Waste Disposal Costs
Dryer cuttings mean lower waste volume, reduced transportation, and lower disposal expenses, resulting in direct cost savings.
✅ Optimized Rig Performance
By reducing non-productive time, protecting solids control equipment, and maintaining cleaner mud systems, the Vertical Cuttings Dryer supports smoother drilling operations.
Petropath’s Expertise in Vertical Cuttings Dryer Systems
Petropath Fluids Ltd. is a trusted provider of drilling waste management equipment and integrated solids control solutions. Our Vertical Cuttings Dryer systems are:
Field-tested for both onshore and offshore rigs
Designed for continuous, automated operation
Customizable to match rig layouts and project needs
Built with heavy-duty materials for long service life
In addition to equipment supply, we provide commissioning, operator training, and ongoing technical support. Our specialty drilling chemicals, including emulsifiers and dewatering polymers, further enhance the performance of the Vertical Cuttings Dryer.
Applications Across Drilling Operations
The Vertical Cuttings Dryer is widely used across diverse drilling environments, including:
Onshore and offshore OBM/SBM wells
Environmentally sensitive drilling locations
High-pressure, high-temperature (HPHT) wells
Shale gas and coal bed methane (CBM) projects
From Gujarat and Assam to offshore Indian fields, Petropath’s Vertical Cuttings Dryer solutions are trusted by leading drilling operators.
Commitment to Sustainable Drilling
FAQs
Typical OOC levels are reduced to below 5%, depending on operating conditions.
Conclusion
We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
