HDD Incline Pipe Rigging Rollers: Reliable HDD Pullback Support
Introduction
In Horizontal Directional Drilling (HDD) projects, efficient pipe handling is essential for completing installations safely and accurately. During the pullback stage, pipelines must move smoothly toward the bore while maintaining proper alignment and minimizing unnecessary friction. Without suitable support equipment, excessive drag, pipe surface damage, misalignment, and operational delays can affect project performance.
HDD Incline Pipe Rigging Rollers are designed to provide stable and controlled pipe support during these demanding pullback operations. Their inclined and contoured configuration helps guide the pipe from the surface toward the bore path while reducing friction and mechanical stress.
Manufactured by Petropath Fluids Ltd., these heavy-duty rollers are developed for trenchless drilling applications where durability, stability, and reliable pipe movement are critical.
What Are HDD Incline Pipe Rigging Rollers?

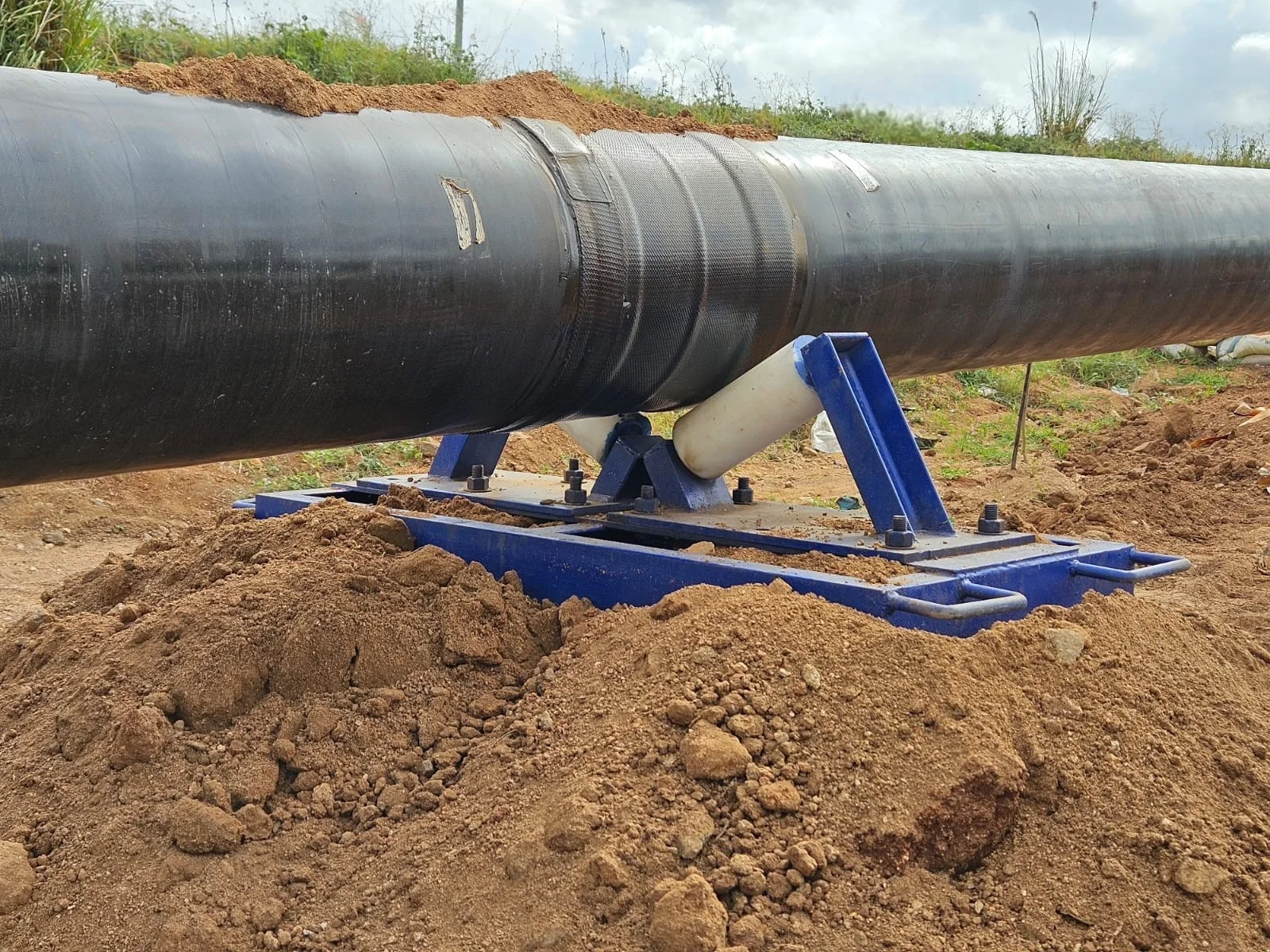

HDD Incline Pipe Rigging Rollers are specialized pipe-support devices used during Horizontal Directional Drilling pullback operations. They help guide and support the product pipe as it approaches the bore entry point and moves along the required installation path.
The inclined roller arrangement provides controlled support while the contoured and bevelled profile helps maintain pipe alignment. By reducing direct contact between the pipe and the ground, these rollers can minimize friction and help protect the pipe surface from unnecessary abrasion.
They are particularly useful on inclined, uneven, or challenging job sites where maintaining consistent pipe positioning is important. For contractors handling different pipeline installation projects, reliable roller support can contribute to smoother and more predictable pullback operations.
Applications of HDD Rigging Rollers
Petropath’s HDD Rigging Rollers can be used across a variety of trenchless construction and pipeline installation applications.
Common applications include:
- Utility pipeline installations
- Oil and gas pipeline crossings
- Water and sewer pipeline installations
- Infrastructure development projects
- Urban HDD construction
- River crossings
- Road crossings
- Railway crossings
Their practical design makes them suitable for contractors working across different site conditions and pipe installation requirements.
Wide Pipe Size Compatibility
One of the important advantages of Petropath’s HDD Pullback Rollers is their compatibility with a broad range of pipe diameters.
Pipe diameter compatibility: 4 inches to 24 inches
This wide operating range allows contractors to use the rollers for different HDD pipeline applications without requiring a separate support solution for every pipe size. Standardizing pipe-handling equipment can simplify site preparation, improve operational flexibility, and potentially reduce equipment investment.
For contractors managing multiple trenchless projects, versatile Bevelled Pipe Rollers for HDD can provide practical support across varying installation requirements.
Key Features of HDD Incline Pipe Rigging Rollers
Optimized Low-Friction Design
The roller surface is designed to facilitate smooth pipe movement during pullback. By reducing friction between the pipe and support surface, HDD Incline Pipe Rigging Rollers help minimize drag and unnecessary mechanical stress.
Lower friction can contribute to smoother pullback movement while helping reduce surface wear on the installed pipe.
Bevelled Roller Profile
The bevelled and contoured roller profile helps maintain pipe stability during movement. These Bevelled Pipe Rollers for HDD are designed to keep the pipe properly supported and reduce unwanted lateral movement.
Consistent pipe positioning is particularly important when working on inclined or uneven ground, where uncontrolled movement can make pullback operations more difficult.
Reliable Performance in Challenging Conditions
HDD construction sites can involve uneven terrain, restricted working areas, inclines, and changing ground conditions. The robust design of these Horizontal Directional Drilling Rollers provides dependable support in demanding field environments.
Their compact configuration also makes them practical for job sites where available working space may be limited.
Heavy-Duty Polypropylene Construction
Petropath’s rollers are manufactured using high-grade polypropylene, providing a combination of durability and practical field performance.
Key material advantages include:
- High wear resistance
- Excellent corrosion resistance
- Low-friction surface
- Good strength-to-weight ratio
- Long service potential
This construction makes the rollers suitable for repeated use across demanding HDD operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model No. | PP-HDD-RR424 |
| Length | 4 ft |
| Width | 2 ft |
| Height | 16 inches |
| Total Weight | 90 lbs |
| Compatible Pipe Diameter | 4–24 inches |
| Material | High-grade polypropylene |
These specifications make the equipment a practical solution for contractors requiring dependable pipe support during HDD pullback activities.
Benefits of Using HDD Pullback Rollers
Using appropriate pipe-support equipment can improve both operational efficiency and job-site safety. HDD Pullback Rollers provide several practical benefits during pipeline installation.
Reduced Pipe Surface Damage
Supporting the pipe above the ground helps reduce direct contact with rough surfaces, lowering the possibility of unnecessary abrasion during movement.
Lower Pullback Resistance
A low-friction roller surface allows the pipe to move more efficiently, helping reduce unnecessary resistance during pullback.
Improved Pipe Alignment
The bevelled roller profile supports controlled pipe positioning and helps maintain alignment as the pipe approaches the bore.
Enhanced Site Safety
Controlled pipe movement reduces unpredictable shifting and provides a more stable handling arrangement for crews working around the pullback operation.
Greater Operational Efficiency
Smooth pipe handling can help reduce delays caused by excessive friction, repositioning, or pipe movement issues, supporting more efficient project execution.
Why Choose Petropath Fluids Ltd.?
Petropath Fluids Ltd. provides drilling fluid solutions and HDD equipment designed for demanding trenchless and oilfield applications. With in-house manufacturing capabilities and a focus on quality control, the company develops products intended to deliver consistent field performance.
The company’s HDD Incline Pipe Rigging Rollers combine practical engineering, durable construction, and versatile pipe-size compatibility. Their design focuses on the requirements contractors face during HDD pullback operations, including pipe protection, alignment, stability, and controlled movement.
For contractors looking for dependable Horizontal Directional Drilling Rollers, Petropath offers a practical solution engineered for demanding project environments.
The rollers are positioned at the entrance or exit of the drilled path to support the pipe. As the pullback phase begins, the inclined design allows the pipe to move up or down smoothly, which evenly distributes the weight and reduces the need for heavy lifting equipment or excessive manpower.
Yes, most heavy-duty rigging rollers are adjustable . They feature mechanisms that can fit a wide variety of pipe diameters (typically ranging from 2″ to over 48″). Some manufacturers design multi-size rollers like cone-type or bevelled rollers that adjust automatically to different widths.
Premium rollers are designed to protect pipe coatings. They are often coated with Polyurethane (PU) , polypropylene (PP) , or nylon , which provide a low-friction surface that prevents scratching, denting, or cracking during the pulling operation.
Load capacities vary heavily depending on the model and project requirements. Standard Adjustable Pipe Rigging Rollers can handle anywhere from 1.5 to 10 tons, while heavy-duty HDD Pipe Heavy Duty Pipe Rollers can safely accommodate even greater loads.
These rollers use a combination of durable materials. The base frame is typically made of robust Mild Steel (MS) or carbon steel to handle immense pressure, while the roller wheels themselves are made of PU (polyurethane) , cast iron , or nylon .
Conclusion
Successful HDD pipeline installation depends on more than drilling accuracy alone. Proper pipe handling during pullback is equally important for protecting the product pipe, maintaining alignment, improving safety, and minimizing unnecessary resistance.
HDD Incline Pipe Rigging Rollers provide stable support and controlled movement for pipes ranging from 4 to 24 inches in diameter. With a bevelled profile, low-friction surface, and heavy-duty polypropylene construction, they are designed to support efficient pullback operations across a variety of trenchless drilling applications.
For contractors seeking reliable pipe-handling equipment, Petropath Fluids Ltd. offers HDD Rigging Rollers engineered to provide durability, stability, and practical field performance.
